57mm固定轴式T型电机-23HS4504-LF-T

所属系列：23HS4504-LF-T

本系列为57 法兰（NEMA23）固定轴式 T 型直线步进电机，机身高度统一45mm，采用紧凑型一体化丝杆传动设计，无需额外安装结构，具备快速定位、高推力与大拉力特性。 丝杆规格：直径 9.53mm / 10mm，导程覆盖 1.58、2、4、10、20、25.4mm 行程范围：12.7mm～63.5mm 多档可选 控制方式：支持开环运行，可选装增量编码器 / E1000 编码器实现高精度闭环控制 适用场景：工业自动化、精密仪器、光学调焦、微型机械臂、医疗设备等空间紧凑、对定位精度与运动性能要求严苛的领域

【提示】本图仅供展示
RoHSCE

系列概要特性

• NEMA23/57丝杆步进电机及固定轴式线性执行器系列，采用标准紧凑或一体化结构，具备长寿命、高精度、军工级精密定位特性，支持高推力、大拉力与快速定位，可装配或内置编码器实现闭环反馈，适配电机控制器与驱动器，提供多种规格可选，涵盖57法兰、23HS等型号及梯形丝杆等类型，适用于各类精密自动化场景。

技术参数

电机电气参数

电机类型步进电机
额定电流2 A
电机反馈类型无
极数50
绝缘等级B级

机械与动力特性

电机法兰57 mm
英制代码NEMA 23
额定推力222.4 N
额定线速度15.8 mm/s
峰值推力453 N
丝杆导程1.58 mm
直线分辨率0.0079 mm
丝杆代码T953-1.58
丝杆类型T型丝杆
丝杆长度12.7 mm
最大行程12.7 mm
结构类型固定轴式
电机高度45 mm
电机防护等级IP20

电机接口与安装规范

电机动力接口形态直接引出线
电机编码器接口形态无编码器
电机编码器连接器型号none
电机制动器接口形态无制动器
电机制动器连接器型号none

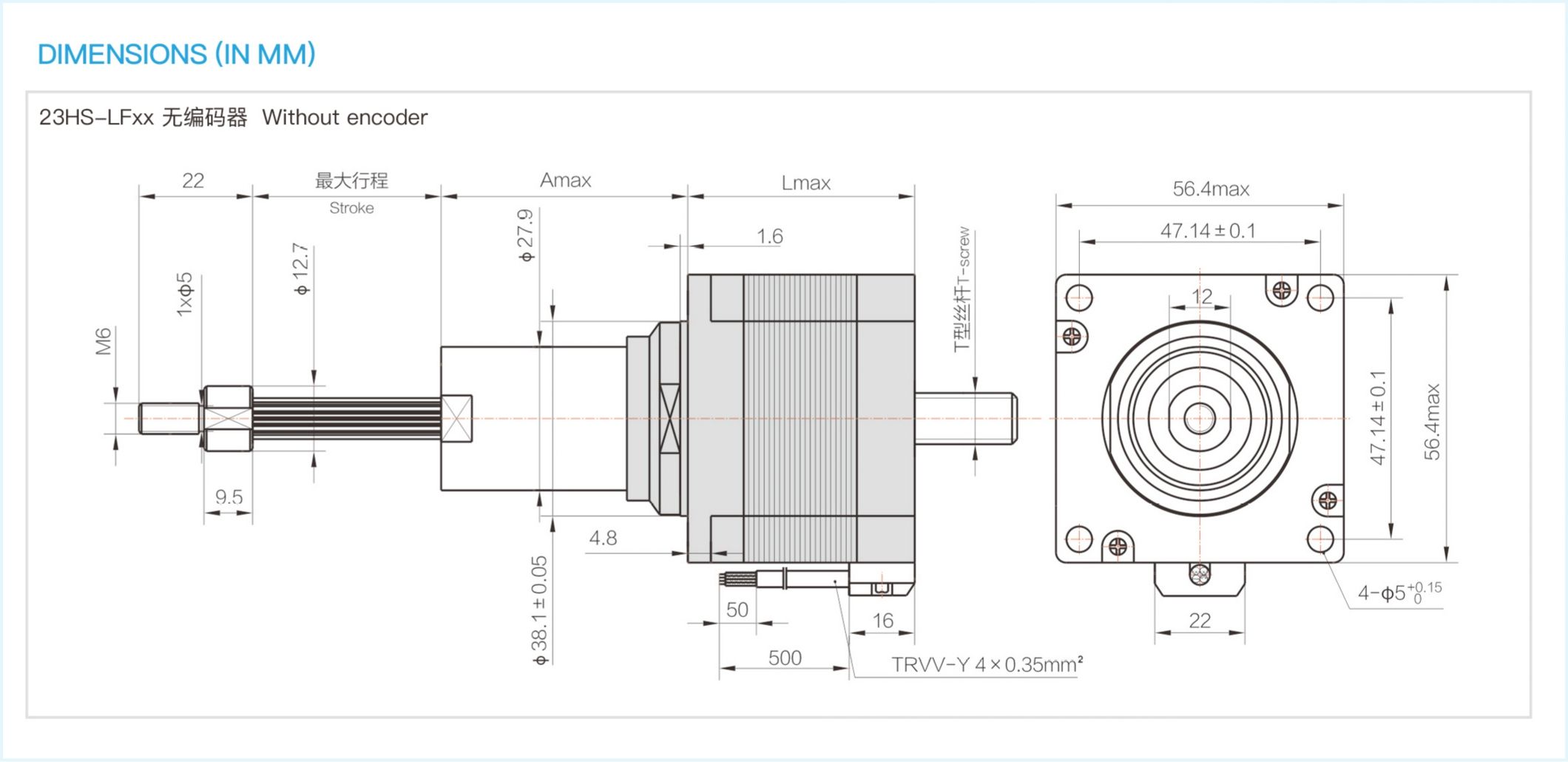

尺寸图

尺寸图

力速特性曲线

3D 预览

文档下载

  • 查看本系列全部 84 款规格型号 (选型参数表)
