RS485 常规型绝对值拉绳位移传感器-YL38-RM
所属系列：YL38-RM
系列概要特性
暂无特性信息
技术参数
编码器与反馈
| 编码器法兰 | 38 mm |
| 编码器极限转速 | 3000 rpm |
| 编码器推荐用途 | 位移测量 |
| 编码器防护等级 | IP54 |
| 操作电压 | 5-24V |
| 编码器精度 | 0.02 |
| 编码器类型 | 机械多圈绝对值 |
| 绝对值量程 | 0.5 米 |
| 编码器分辨率 | 1024 |
| 输出信号电压 | 24 V |
| 输出信号类型 | Modbus RTU |
| 响应频率 | 50 us |

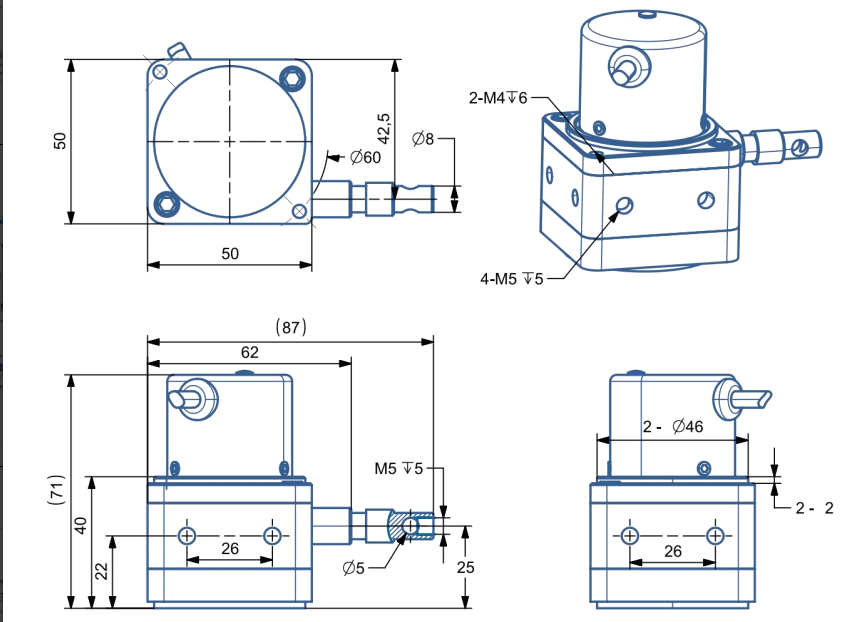

尺寸图
文档下载
暂无相关文档下载
- 查看本系列全部 26 款规格型号 (选型参数表)
型号 (SKU) 配置概述 YL38-L05-RM-E1024-RT1 RS485 常规型1024拉绳位移传感器-YL38-L05-RM-E1024-RT1 YL38-L1-RM-E1024-RT1 RS485 常规型1024拉绳位移传感器-YL38-L1-RM-E1024-RT1 YL38-L10-RM-E1024-RT1 RS485 常规型1024拉绳位移传感器-YL38-L10-RM-E1024-RT1 YL38-L12-RM-E1024-RT1 RS485 常规型1024拉绳位移传感器-YL38-L12-RM-E1024-RT1 YL38-L15-RM-E1024-RT1 RS485 常规型1024拉绳位移传感器-YL38-L15-RM-E1024-RT1 YL38-L2-RM-E1024-RT1 RS485 常规型1024拉绳位移传感器-YL38-L2-RM-E1024-RT1 YL38-L3-RM-E1024-RT1 RS485 常规型1024拉绳位移传感器-YL38-L3-RM-E1024-RT1 YL38-L4-RM-E1024-RT1 RS485 常规型1024拉绳位移传感器-YL38-L4-RM-E1024-RT1 YL38-L5-RM-E1024-RT1 RS485 常规型1024拉绳位移传感器-YL38-L5-RM-E1024-RT1 YL38-L6-RM-E1024-RT1 RS485 常规型1024拉绳位移传感器-YL38-L6-RM-E1024-RT1 YL38-L7-RM-E1024-RT1 RS485 常规型1024拉绳位移传感器-YL38-L7-RM-E1024-RT1 YL38-L8-RM-E1024-RT1 RS485 常规型1024拉绳位移传感器-YL38-L8-RM-E1024-RT1 YL38-L9-RM-E1024-RT1 RS485 常规型1024拉绳位移传感器-YL38-L9-RM-E1024-RT1 YL38-L05-RM-E4096-RT1 RS485 常规型4096拉绳位移传感器-YL38-L05-RM-E4096-RT1 YL38-L1-RM-E4096-RT1 RS485 常规型4096拉绳位移传感器-YL38-L1-RM-E4096-RT1 YL38-L10-RM-E4096-RT1 RS485 常规型4096拉绳位移传感器-YL38-L10-RM-E4096-RT1 YL38-L12-RM-E4096-RT1 RS485 常规型4096拉绳位移传感器-YL38-L12-RM-E4096-RT1 YL38-L15-RM-E4096-RT1 RS485 常规型4096拉绳位移传感器-YL38-L15-RM-E4096-RT1 YL38-L2-RM-E4096-RT1 RS485 常规型4096拉绳位移传感器-YL38-L2-RM-E4096-RT1 YL38-L3-RM-E4096-RT1 RS485 常规型4096拉绳位移传感器-YL38-L3-RM-E4096-RT1 YL38-L4-RM-E4096-RT1 RS485 常规型4096拉绳位移传感器-YL38-L4-RM-E4096-RT1 YL38-L5-RM-E4096-RT1 RS485 常规型4096拉绳位移传感器-YL38-L5-RM-E4096-RT1 YL38-L6-RM-E4096-RT1 RS485 常规型4096拉绳位移传感器-YL38-L6-RM-E4096-RT1 YL38-L7-RM-E4096-RT1 RS485 常规型4096拉绳位移传感器-YL38-L7-RM-E4096-RT1 YL38-L8-RM-E4096-RT1 RS485 常规型4096拉绳位移传感器-YL38-L8-RM-E4096-RT1 YL38-L9-RM-E4096-RT1 RS485 常规型4096拉绳位移传感器-YL38-L9-RM-E4096-RT1
