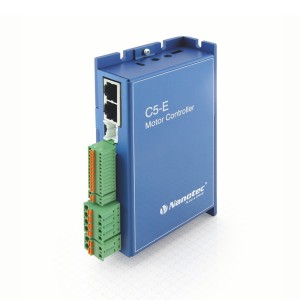

C5-E Stepper & Servo Controller
Controller/drive for brushless DC motors and stepper motors with a flange size from NEMA 17 to NEMA 34. Available in a low-current version with 6 A rated current/6 A peak current and in a high-current version with 10 A rated current/30 A peak current.Support master system: Beckhoff, Omron, etc.
Features
- Controlled by EtherCAT & I/O
- Easy to parameterize via EtherCAT
- Simple programming with the Plug & Drive Studio
- Closed loop with encoder
- Servo & Stepper Universal driver
- Brake output
规格参数
| 额定电流（A）: | 6/10 A |
| 供电电压 V DC: | 12-48 V DC |
| 控制接口: | EtherCAT |
| 输入 & 输出: | 5 Digital inputs (5/24 V switchable ) 2 Analog input -10 - +10 V/0-20 mA switchable 3 Digital outputs |
| OEM可编程: | Yes |
| 定制化: | OEM logic program |
| 适用电机: | stepper and DC servo motor |
文档下载
| 文件 | 类型 | 大小 | 最后更新 | 链接 |
|---|---|---|---|---|
| PNDS-2.0.5-release-package | zip | 323.863MB | 12月 / 19 / 2019 | Download |
| C5-E-x-21_EtherCAT_USB_Technical-Manual_V1.1.0 | 4.394MB | 12月 / 27 / 2019 | Download | |
| Product Overview C5-E | 764.062KB | 12月 / 27 / 2019 | Download |
