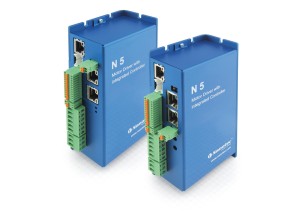

N5 EtherCAT DC Servo Controller
High power dc servo driver, support stepper motor and servo motor. EtherCAT high-speed interface. Low-current versions with 12-72 V operating voltage and 10 A rated current / 10 A peak current, and high-current versions with 12-58 V operating voltage and 18 / peak current 40 A. Rich input and output interfaces. Host adaptation for Beckhoff, Omron, etc.
Features
- Controlled by EtherCAT and analog/digital inputs
- Easy to parameterize via EtherCAT & EtherNet/IP
- DC servo controller
- Brake output
规格参数
| 额定电流（A）: | 18 A |
| 供电电压 V DC: | 12-58 V DC |
| 控制接口: | EtherCAT |
| 输入 & 输出: | 6 Digital inputs (5/24 V switchable ) 2 Analog input -10 - +10 V/0-20 mA switchable 2 Digital outputs |
| OEM可编程: | Yes |
| 定制化: | OEM logic program |
| 适用电机: | stepper and DC servo motor |
文档下载
| 文件 | 类型 | 大小 | 最后更新 | 链接 |
|---|---|---|---|---|
| Motor Controllers Drives Catalog | 12.145MB | 12月 / 19 / 2019 | Download | |
| N5_EtherCAT_Technical-Manual_V2.0.2 | 6.239MB | 12月 / 26 / 2019 | Download | |
| PNDS-2.0.5-release-package | zip | 323.863MB | 12月 / 19 / 2019 | Download |
