57mm空心轴步进电机-23HS4504-H

所属系列：23HS4504-H

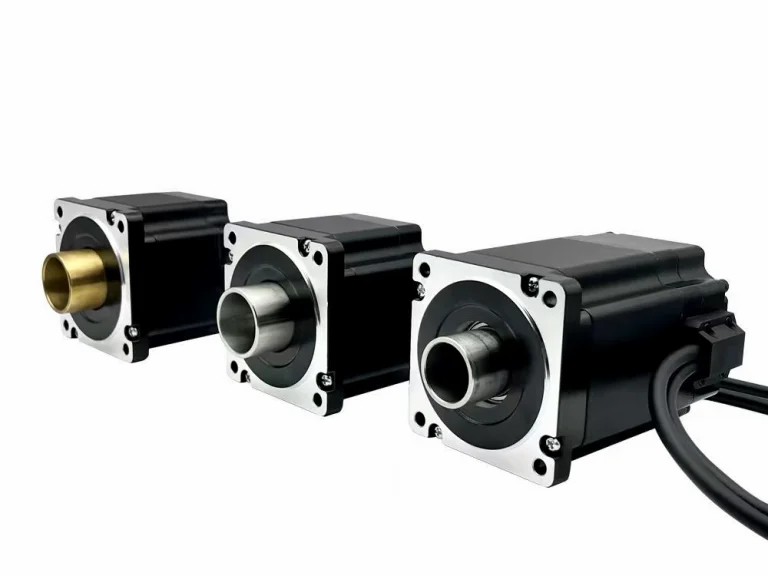

57法兰空心轴闭环步进电机是一款集成高精度编码器的微型Nema23空心轴伺服电机，内径4-8mm，支持高精度通孔加工和标准通孔加工，满足不同的应用场景，支持定制。所有电机支持丰富规格的驱动器可选。详细信息请浏览网站或与我们联系。

【提示】本图仅供展示
RoHSCE

系列概要特性

• 中空轴步进电机
• 57系列法兰
• 可配套编码器
• 更长的寿命和更高的精度
• 提供不同长度
• 电机控制器/驱动器可用

技术参数

电机电气参数

电机类型步进电机带ABI编码器
电机反馈类型差分ABZ(光编)
额定电流2 A
极数50
绝缘等级B级

机械与动力特性

电机法兰57 mm
英制代码NEMA 23
保持扭矩0.7 N.m
空心轴内径4 mm
空心轴外径10 mm
转动惯量155 g・cm²
电机高度45 mm

电机接口与安装规范

电机动力接口形态直接引出线
电机编码器接口形态直接引出线
电机制动器接口形态无制动器

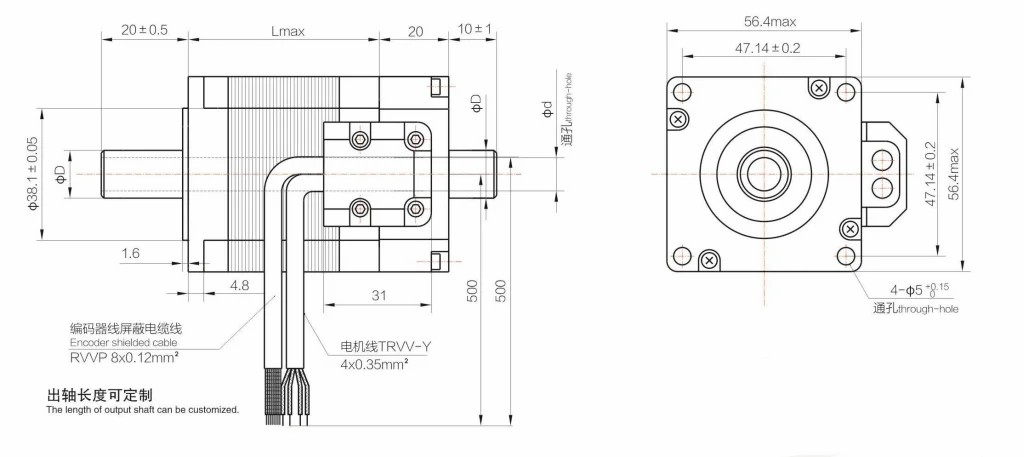

尺寸图

尺寸图

力速特性曲线

3D 预览

文档下载

暂无相关文档下载

  • 查看本系列全部 32 款规格型号 (选型参数表)
    型号 (SKU)配置概述
